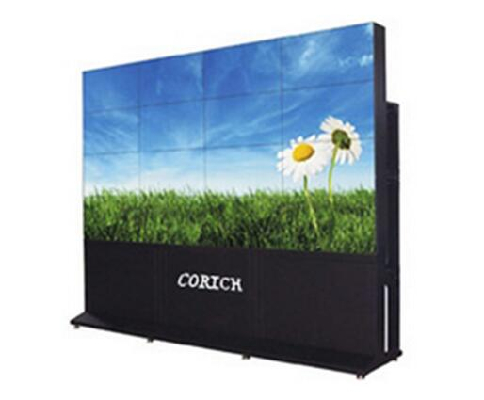

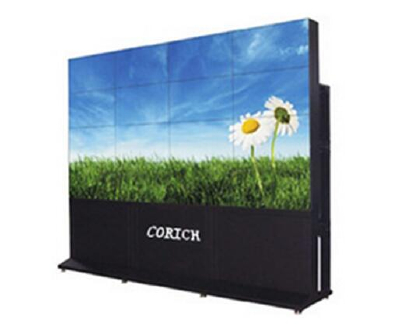

LCD display curtain wall is a new technology for end products of Shenzhen city science and technology limited company, it is designed for application in engineering design of specialized terminal display device. It uses FPGA array as the hardware foundation, using parallel graphics processing technology of high speed, to achieve a unified multi-channel high-speed video signal processing, essentially replacing plug connection controller, solved by limiting the number of input VGA signal problem. It will be the most excellent DID high definition, high brightness and high color liquid crystal display technology of embedded hardware, multi screen splicing technology and image processing technology, signal switching technology as a whole, formed with a high brightness, high resolution, low power consumption, long service life, liquid crystal mosaic wall advanced display system. Division I LCD mosaic curtain wall is a new large screen splicing mode, which can be unlimited splicing.

Flat panel display technology will be the mainstream application technology of next generation tiled display system. LCD technology after years of development, has been in the field of flat panel display occupies an important position. Mosaic curtain wall ultra light, ultra-thin, long-life, low maintenance costs, low power consumption, no radiation, high definition, outstanding advantages, attention.

Liquid crystal splicing wall, to DID LCD screen as the basic display unit, set LCD display of the latest hardware high-speed real-time splicing control technology in a unique technology and CMX, all of the input signals can be freely displayed on the display wall window, full support of screen image, picture in picture, zoom, roaming, superposition other high-end display function. Controller for display screen tailored, special plane, to maximize the effectiveness of display units.

LCD mosaic curtain wall, clear image, flexible combination of diverse, rich display content, can give users the largest free design space, providing shocking display.

Characteristic description

The whole hardware structure of the system:

LCD as basic display unit;

High display resolution, delicate screen, rich in content;

Area, small size, light weight;

Longer display life;

No radiation, low power consumption, high display efficiency;

Integrated RGB/VGA, composite video, DVI signal input;

Support multi-channel RGB/VGA/DVI signal real-time display;

Any user control picture in picture mode;

Images can be superimposed in real time, cross screen roaming;

All signal parallel real-time processing;

Start time less than 10 seconds;

High stability, boot immediately work, arbitrary power off;

Can be 24 hours of continuous work;

Easy to operate, no need to install complex software.
